Wood carving and milling machine for aluminium material

  • Wood carving and milling machine for aluminium material
  • Wood carving and milling machine for aluminium material
  • Wood carving and milling machine for aluminium material
  • Wood carving and milling machine for aluminium material

Wood carving and milling machine for aluminium material

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Wooden case packing
    Productivity: 1000 sets
    Brand: Utech
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 1000 sets per month
    Certificate: ISO 9001
    HS Code: 8465990000
    Port: Qingdao,Shanghai,Shenzhen

Basic Info

Model No.: Sesame 1325

Product Description

Wood carving and milling machine for aluminium material

Carpet, Felt, Foam, Closed Cell Foam, Fiberglass Insulation, Composites, Gasket Materials, Rubber, Fabric, Honeycomb Cardboard, Single-ply Cloth/Fabric, Corrugated Cardboard/Paperboard, Snowboard, Corrugated Plastic, Leather Goods, wood veneer for inlay/marquetry artwork, Carbon fiber pre-preg laminates for aerospace, military, and automotive components, Vinyl and more.

Applications

1). Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2
). Advertising industry: Advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3
). Die industry: Asculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

1325 Wood Working Cnc Router

Detailed Images

Model Sesame
Working Area 1300*2500*150mm
Table structure T-slot table
Transmission Device X, Y axis: Precision helical tooth gear transmission
Z axis: Precision tBI ball screw
Travel speed 0-25000mm/min
Working speed 0-18000mm/min
Driving mode Patent stepper reducer structure
Spindle power 3.2KW water cooled spindle motor
Spindle speed 0-24000rpm
Diameter of cutter φ3.175-φ12.7mm
Command code HPGL G-code
Working voltage AC220V/Hz
Device interface Standard PCI/USB interface optional
Resolution 0.01mm
Machine size(W*D*H) 3080*2000*1550mm
Warranty 12 months
Weight 1300kg

Main Feature:

1. 3.2kw water or 3.5 air cooled high frequency spindle. Fully programmable speeds from 6000 to 24000RPM.

2. Machine bed with 200 * 300mm square tube welded together, more stabilty.

3. Bed welding process increases the reserved forklift.

4. Dust cover for the guide rail and the helical rack and gear.

5. Transmission column, we adopt high - precision machining process, ensure the accuracy of accessories.

6. Double insurance emergency stop switch.

7. Choose heavy duty linear guide rail with high assembly flange sliding block.

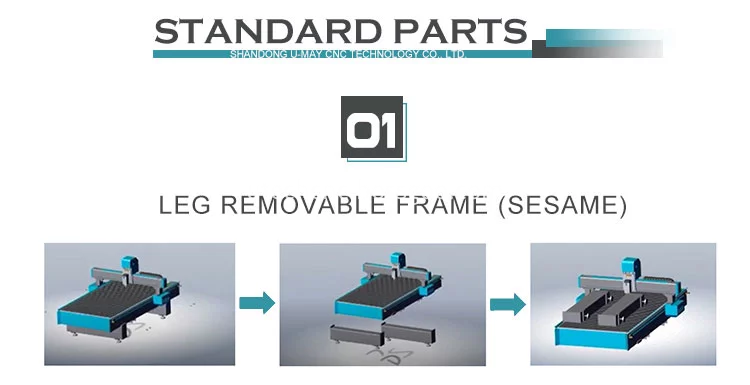

8. The machine main body and the machine legs are freely separable.

2




1325 metal milling cnc router

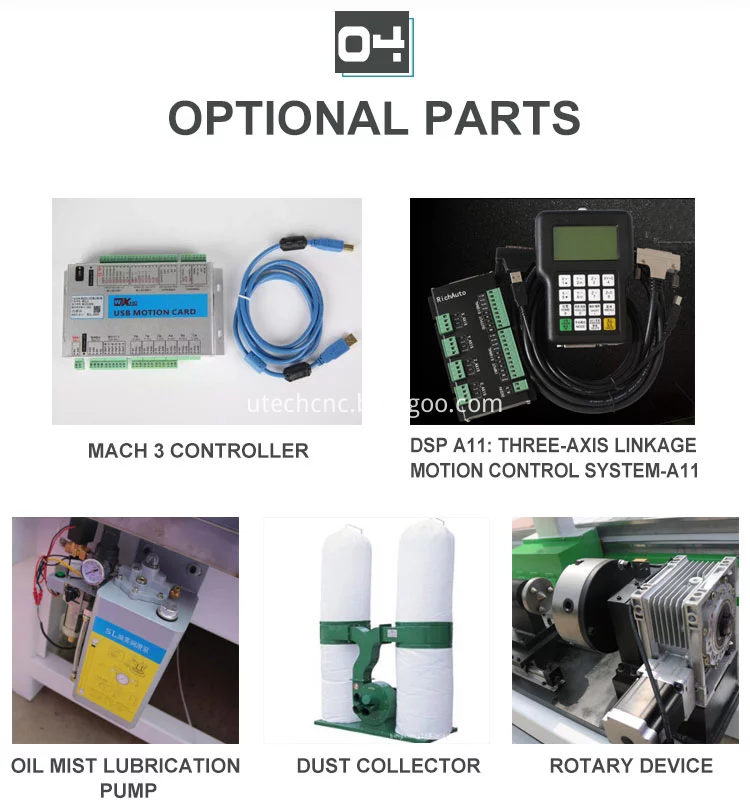

Optional Parts:

1. Mach3 control system 2. DSP control system 3. Oil mist lubrication pump 4. Dust collector 5. Rotary Attachment

1325 cnc router metal cutting machine
Our Service

Warranty: 12 months If the parts are damaged during the warranty period, we will replace the new parts for you free of charge.

1). Before service: We will try to know more about your demands, including the max working size, main processing materials and the thickness, so we will offer you suit machine. 2). Service of training: The English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine, it there is any question about the operation, we will have the professional technician to help them how to operate by online, until the customer can use it freely.

Company Information

Shandong U-May CNC Technology Co., Ltd. provides one-stop service, including design, installation, training, commissioning, maintenance and consulting. We pursue people oriented management tenet providing staff with a broad development platform, and constantly improving the company evaluation system, incentive mechanism and training system. We always emphasize on research and development. Adhering to the spirit of innovation, we will never stop to develop our own brand and new products. Your satisfaction is always what we pursue. With the expanded market, we sincerely hope to cooperate with customers from all over the world. All parts of the machine can be upgraded or changed. Please tell us your material and size. We will customize the most suitable machine for you.

1325 Engraver Machine for Milling
